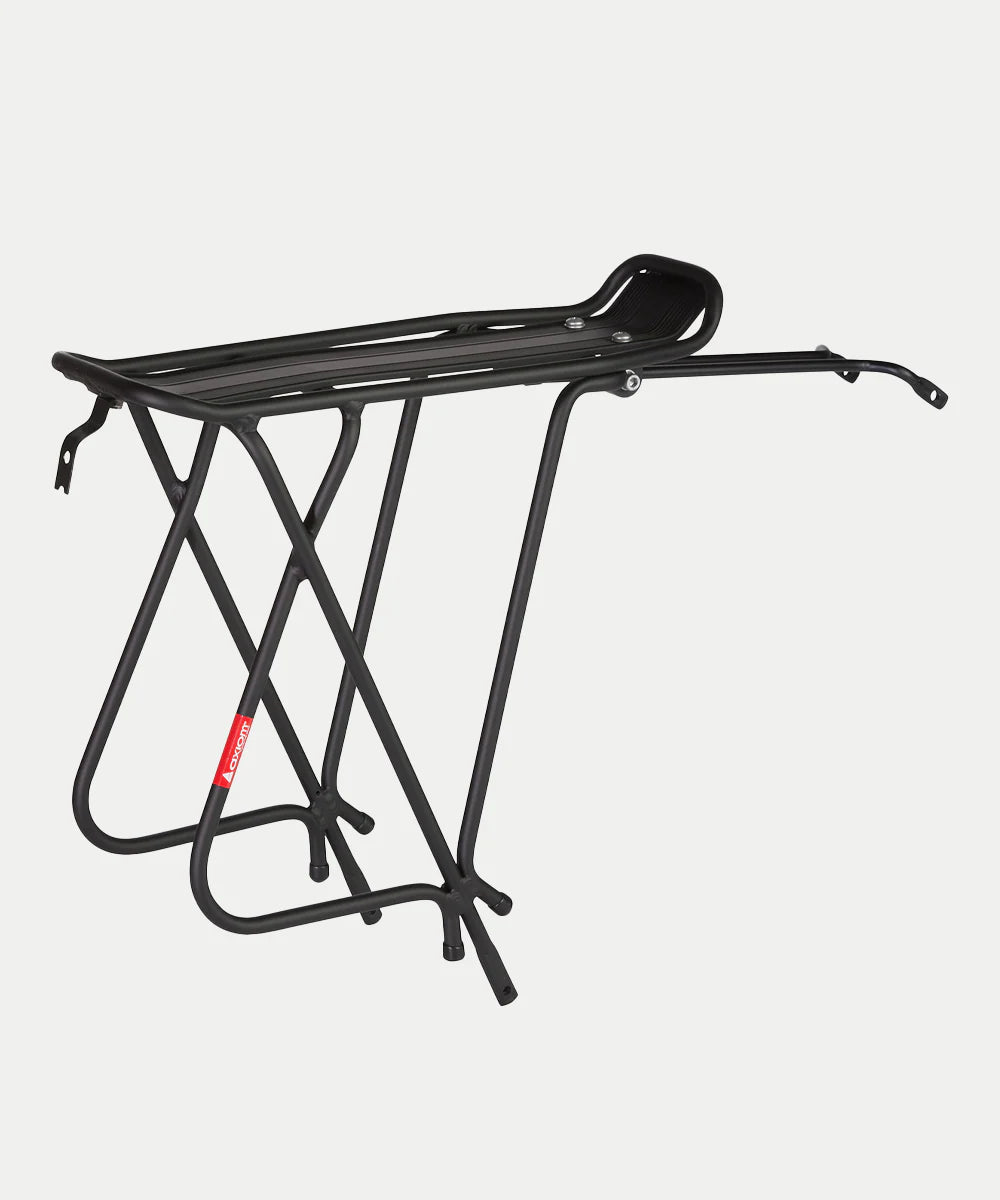

Axiom Journey Rear Rack

• 70 kg (154 lb.) load capacity.
• Three sturdy supports, including one that sweeps back, prevent your panniers from bouncing into your wheel – even when the road gets rough.
• Designed to sit your load further back over the wheel to give you plenty of heel clearance and better balance with a large load.

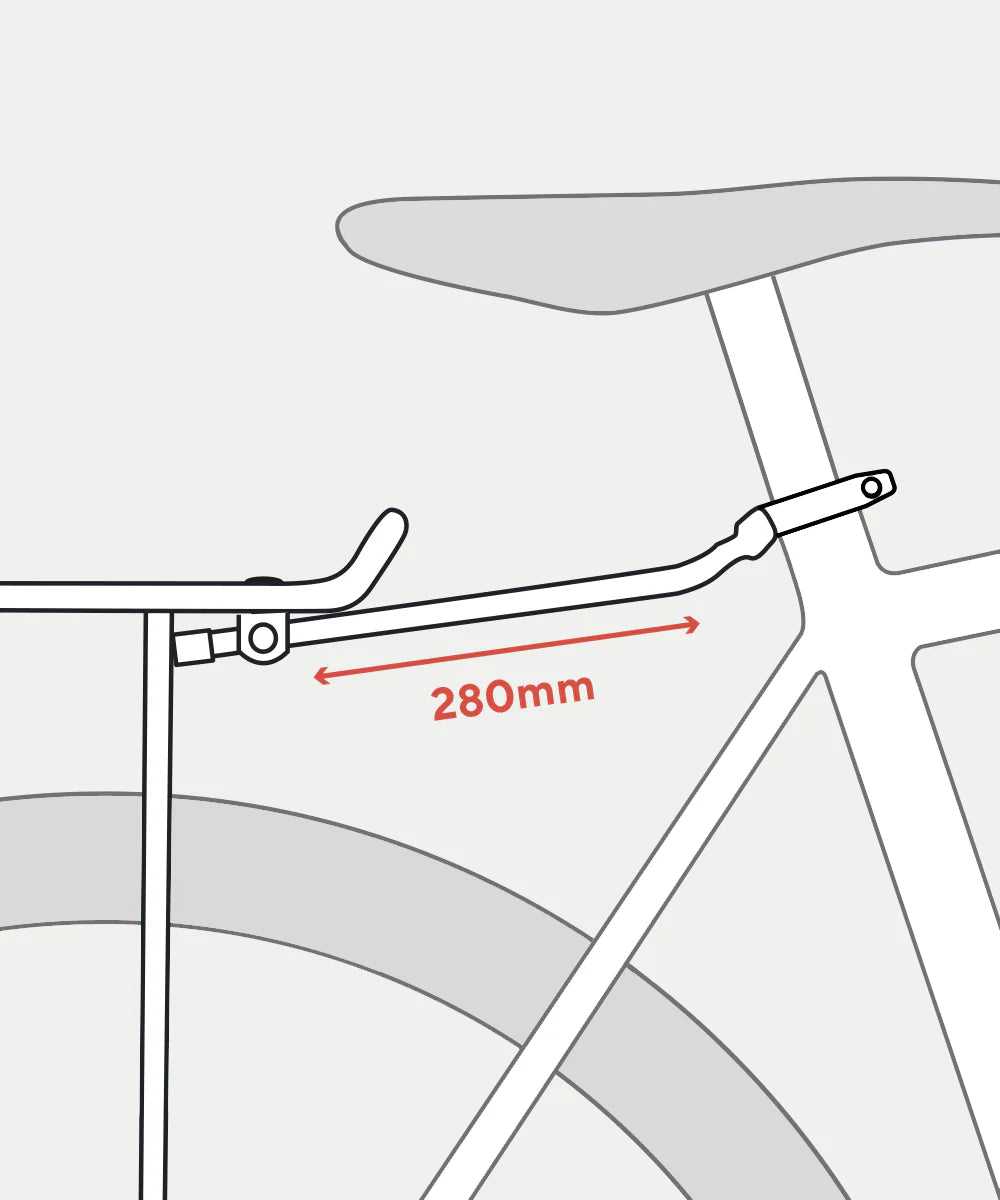

• Versalock™ arms easily attach to frames with eyelets and are extra-long (280 mm / 11 in.) to fit small bikes.
• For a custom fit, you can round the Versalock arms up to 30º without impacting their strength.

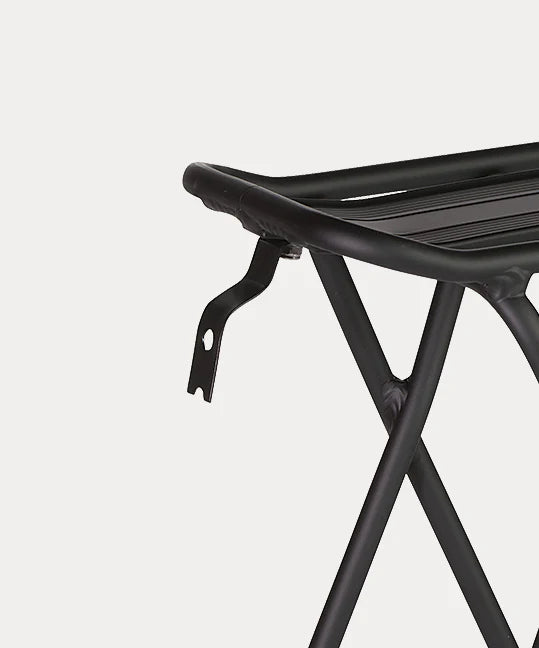

• Versalock brackets can mount over or under the rack platform (a handy option for bikes that might have tricky mounting challenges).
• Generous platform size is great for trunk bags and rear baskets, even on small frames.
• Lots of room for different fender styles.
• Includes frame bolts and mount for your own reflector or light.

Mounting

• Includes mounting bolts to attach to frames with eyelets

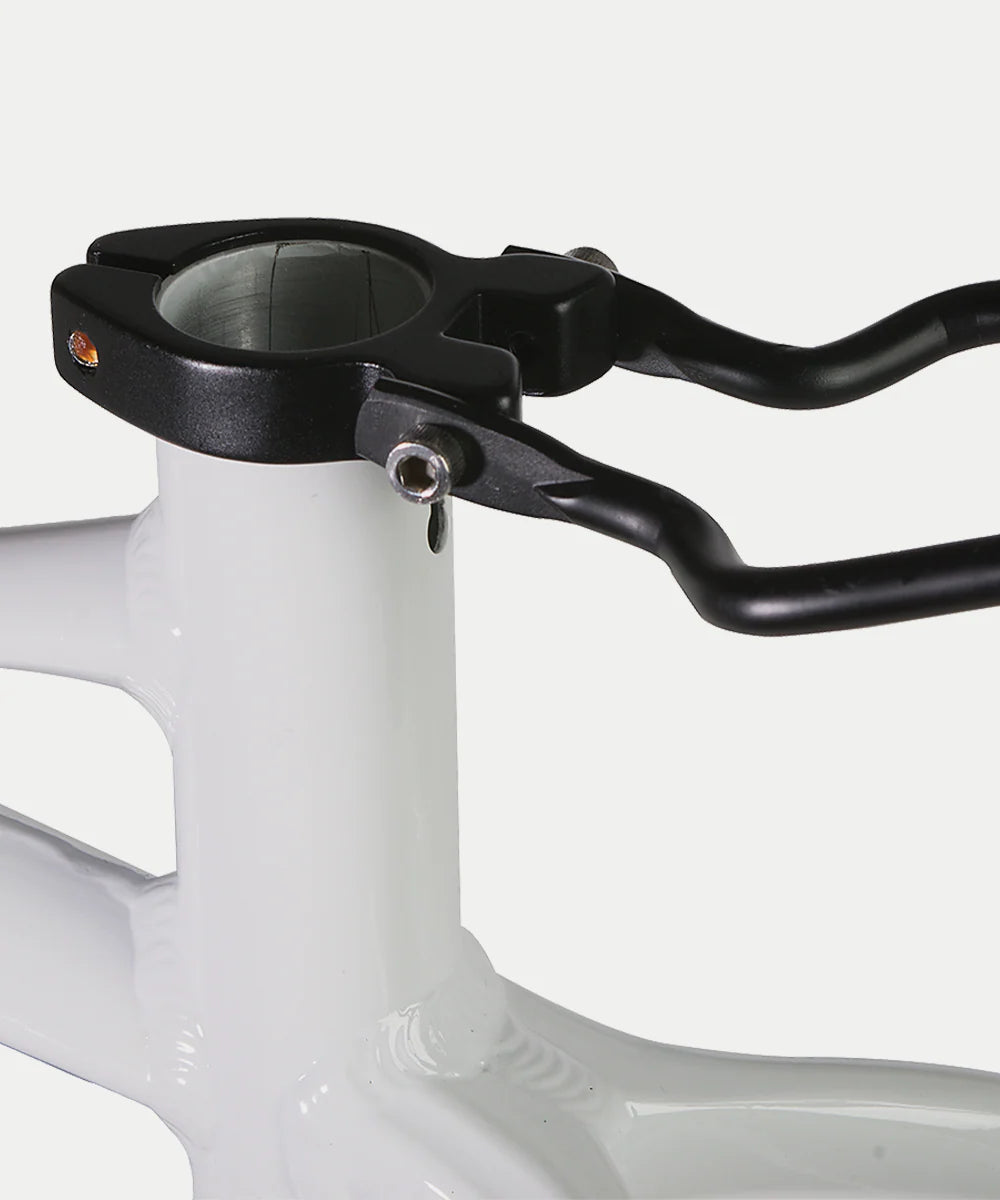

• Other mounting options (sold separately): Trekk Seat Collar

Materials

• Double hand-welded, Infinitealum™ recycled tubular 10.2 mm 6061 T6 aluminum

Compatibility

• Fits wheel sizes: 26 in., 27 in., 700c

• Length of stays: 365mm (14.4")
• Platform size: 390 x 150mm (15.4 x 5.9")
• Weight: 700g (1.54lbs) - including hardware
• Load capacity: 70kg (154lbs)
• Item number: 171339
