Sale price$84.99
Quantity:

More From AXIOM

Pickup available at County Cycle Usually ready in 24 hours

Axiom Streamliner Disc DLX Rear Rack

County Cycle

Pickup available, usually ready in 24 hours

4977 King Street
Beamsville ON L0R 1B0
Canada

+12895668855

Hours

Mon - Fri 10am-6pm / Sat 10am-5pm

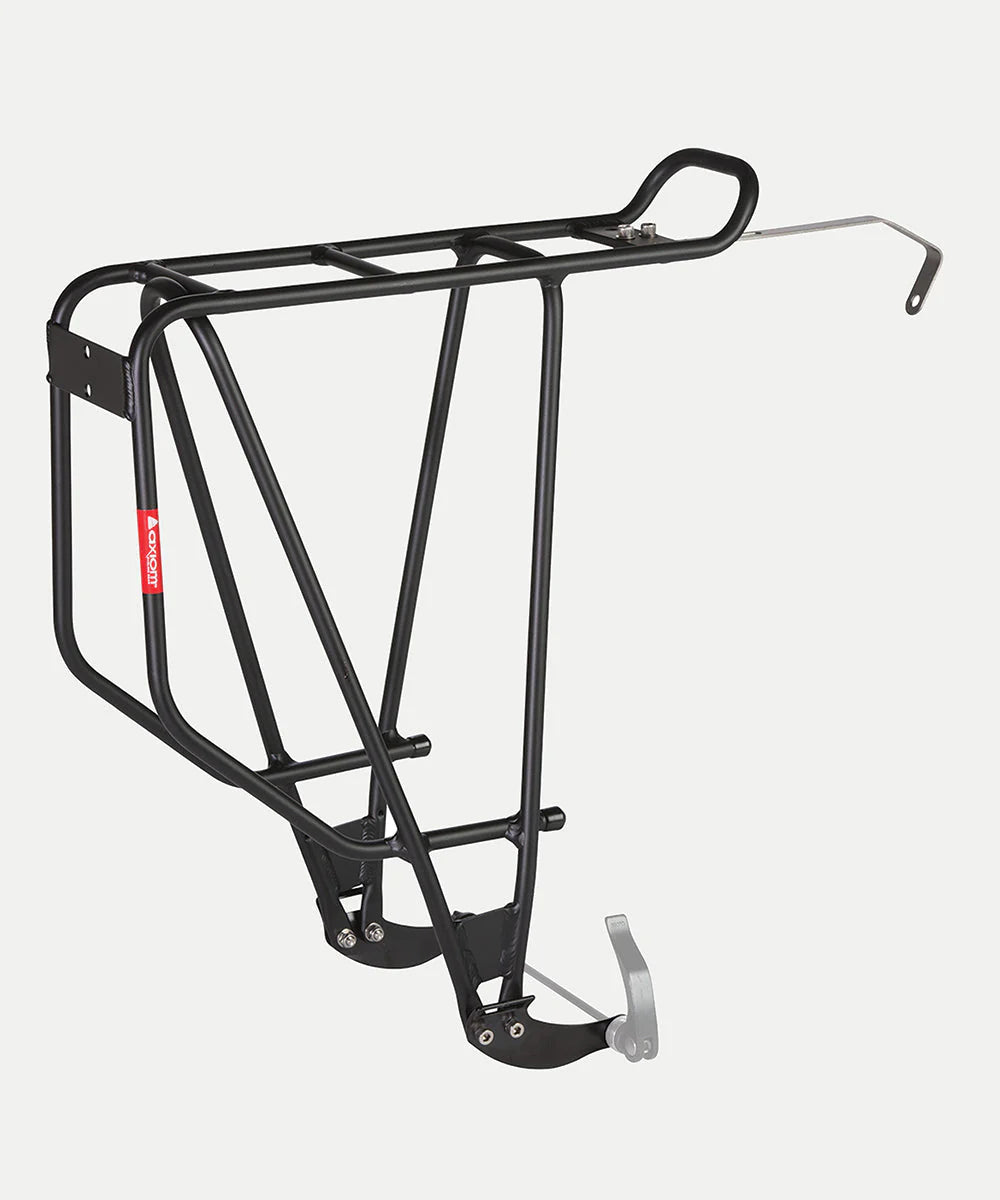

One of our favourite racks. Made to fit almost any bike, it’s compatible with lots of wheel sizes, frames with or without eyelets, and bikes with or without disc brakes. Road, urban, mountain bikes – you name it.The design works well with short chainstays and tight tolerances, pushing the rack further back over your rear wheel for better heel clearance. The narrow profile keeps panniers closer to the centre for stability and smooth handling. We’re also proud of the material: high-quality recycled aluminum, chosen for its strength and sustainability.

  • 50 kg (110 lb.) load capacity.
  • Compatible with disc brakes.
  • Super stiff and streamlined design improves handling when you have a heavy load.
  • Designed to sit your load further back over the wheel to give you plenty of heel clearance and better balance with a large load.

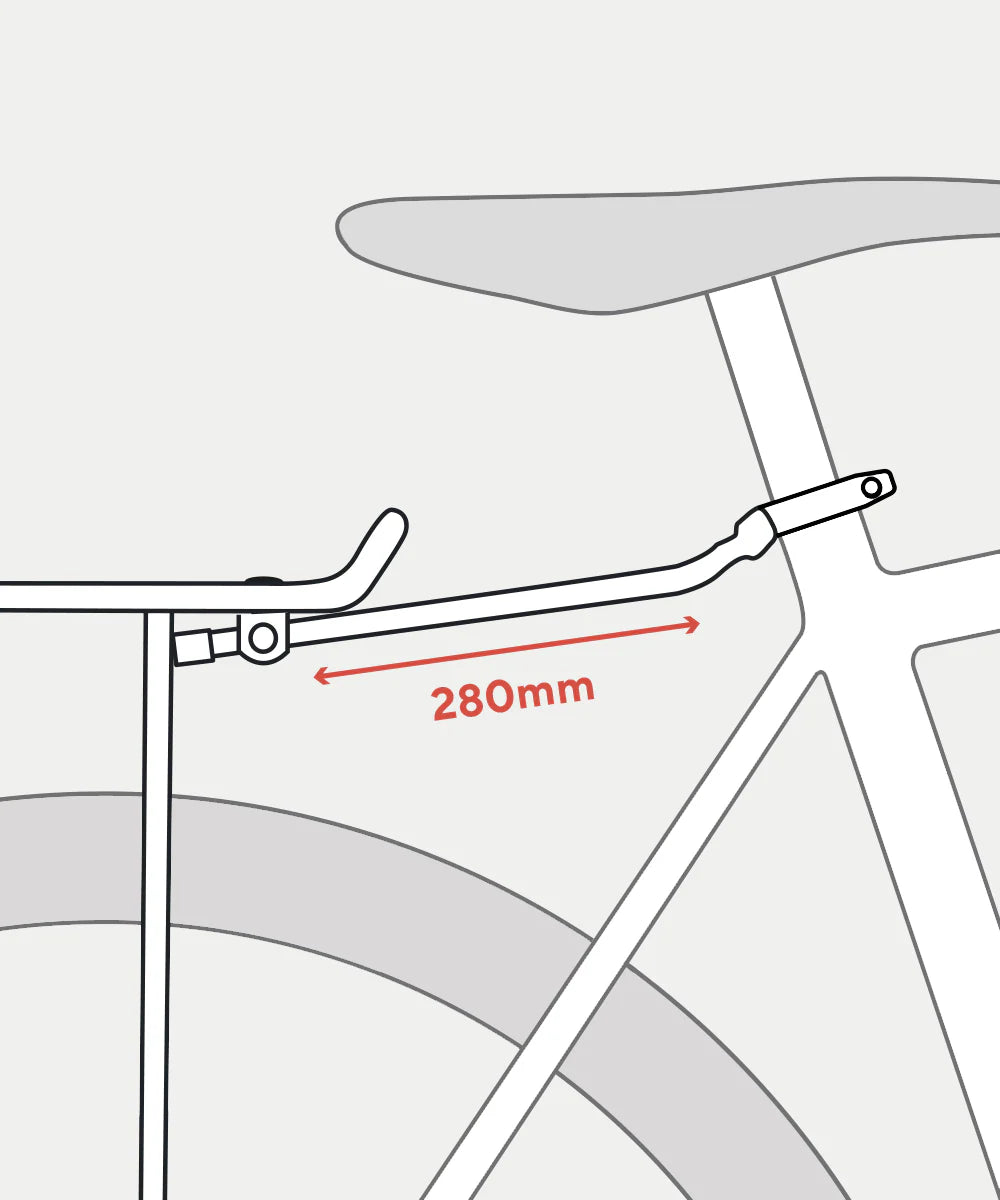

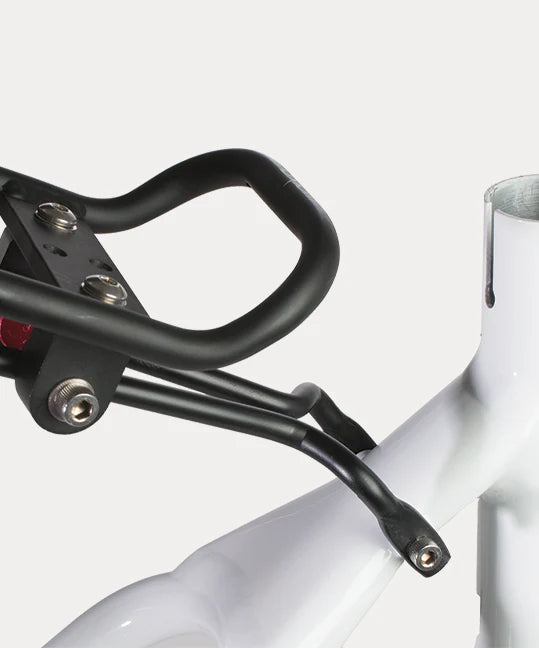

  • Versalock™ arms easily attach to frames with eyelets and are extra-long (280 mm / 11 in.) to fit small bikes.
  • For a custom fit, you can round the Versalock arms up to 30º without impacting their strength.
  • Versalock brackets can mount over or under the rack platform (a handy option for bikes that might have tricky mounting challenges).

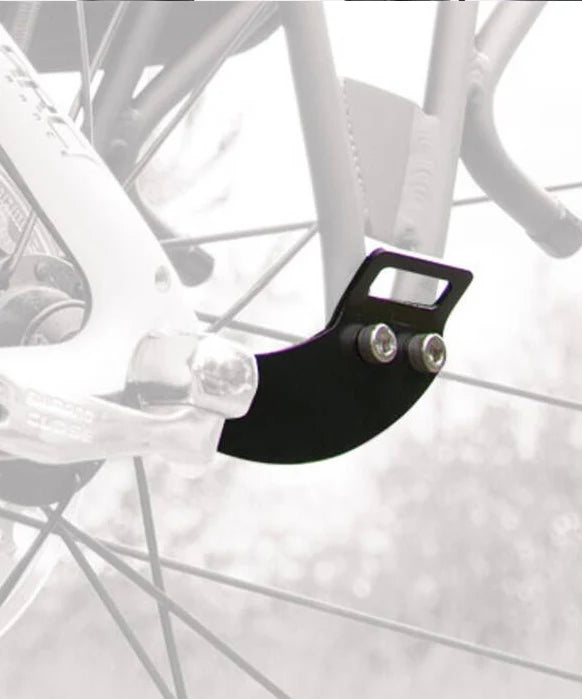

  • Lots of room for different fender styles. Simply bolt fenders to the rear holes on the sweepback feet.
  • Includes frame bolts and mount for your own reflector or light.

Mounting

  • Includes mounting bolts to attach to frames with eyelets

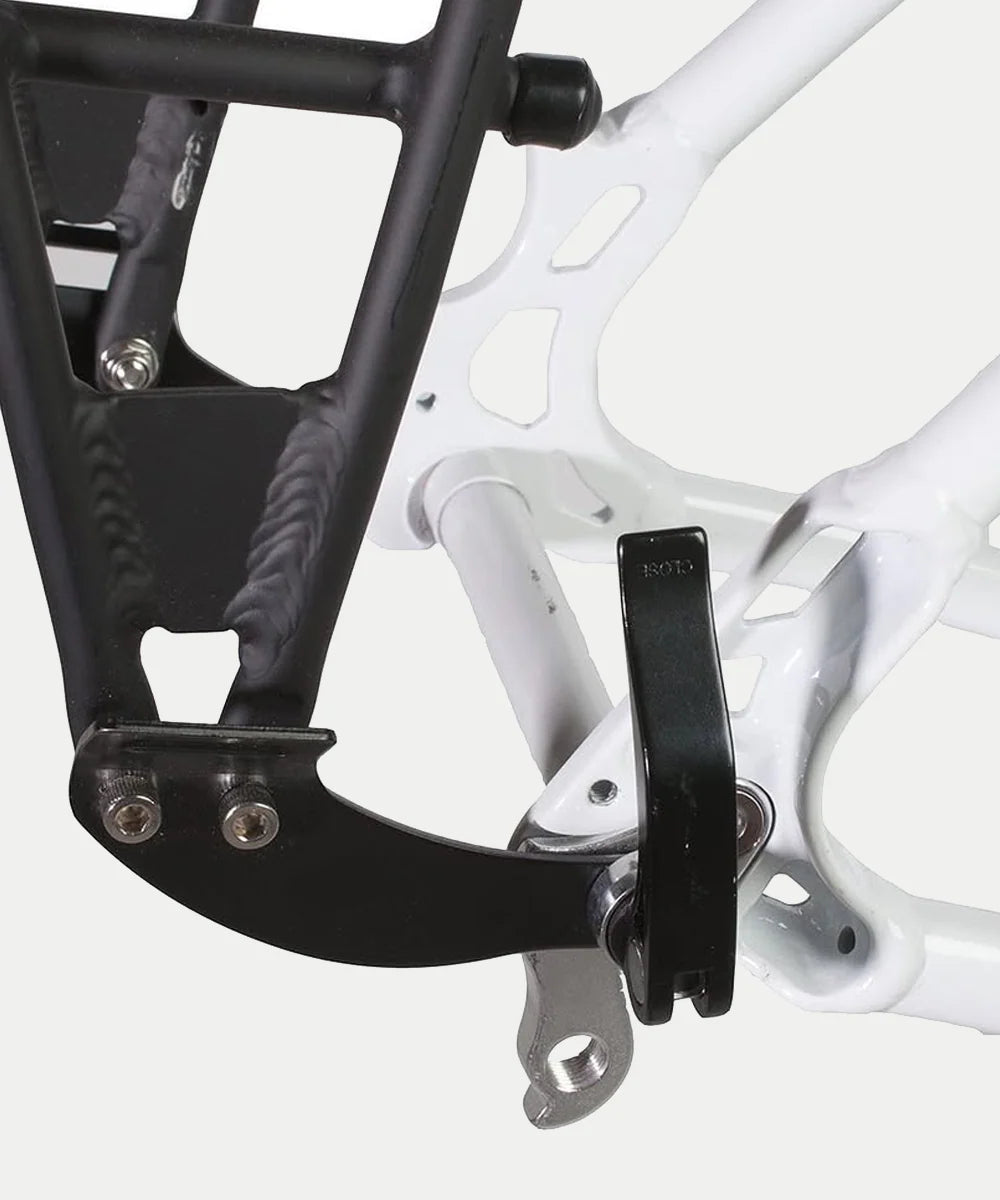

  • For bikes without frame eyelets, it can attach to a standard quick-release skewer (skewer not included)

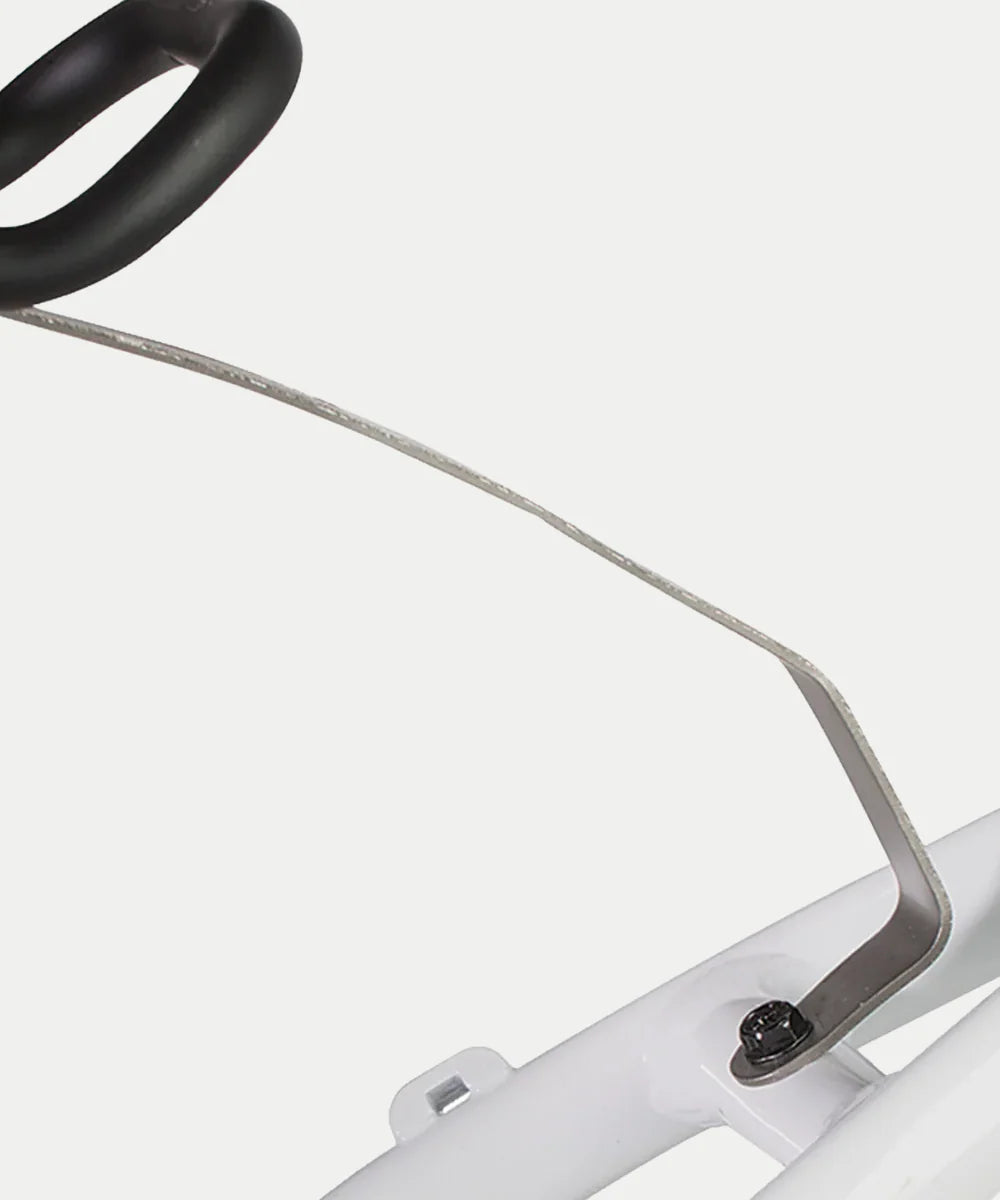

  • Centre bracket can attach to a brake caliper or fender bridge
  • Other mounting options (sold separately):

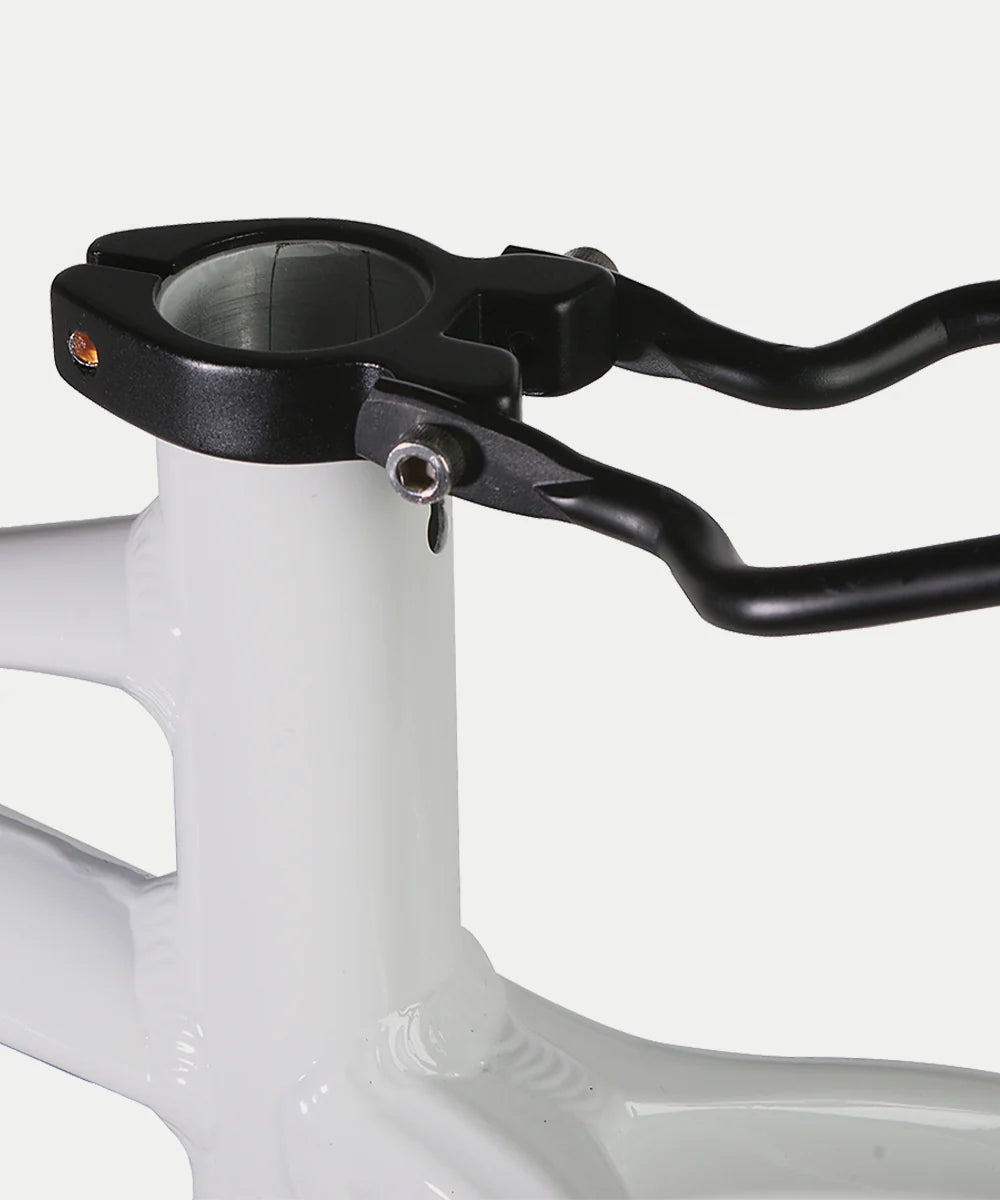

  • Trekk Seat Collar
  • Nutted Axle Kit

Materials

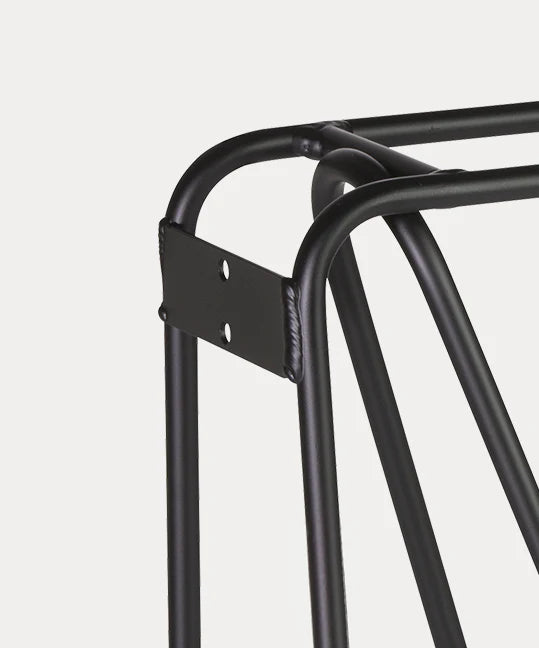

  • Double hand-welded, Infinitealum™ recycled tubular 10.2 mm 6061 T6 aluminum

Compatibility

  • Fits wheel sizes: 26 in., 27 in., 27.5 in., 28 in., 700c
  • Disc brake compatible
  • Quick-release skewer compatible
  • Length of stays: 395mm (15.6")
  • Platform Size: 355 x 100mm (14 x 4")
  • Weight: 710g (1.56lbs) - including hardware
  • Load Capacity: 50kg (110lbs)
  • Item number: 171271
