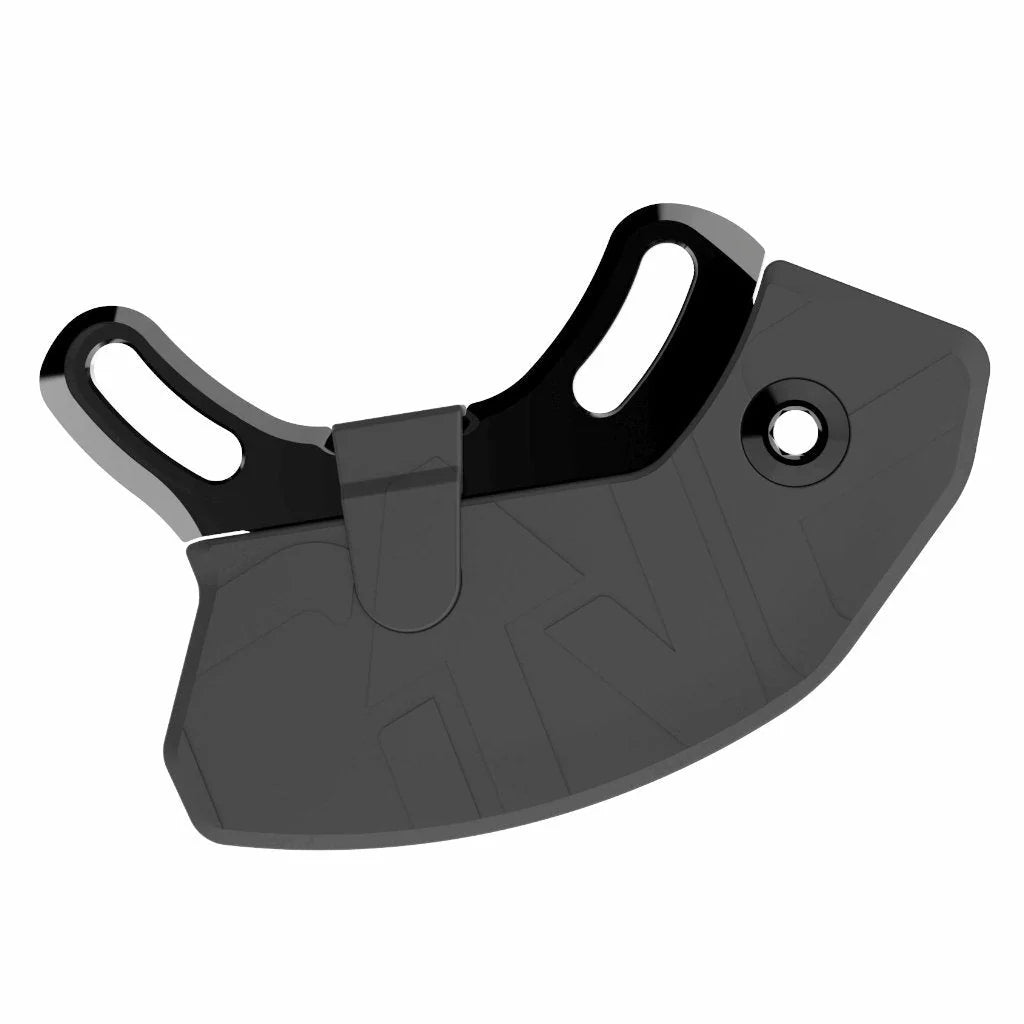

OneUp Components ISCG05 Underbash
Color:Black
Quantity:
More From OneUp Components
Pickup available at County Cycle
Usually ready in 24 hours
OneUp Components ISCG05 Underbash
Black
County Cycle
Pickup available, usually ready in 24 hours
4977 King Street
Beamsville ON L0R 1B0
Canada
Hours
M-F 9am-6pm / Sat 9am-5pmIf you're not looking for chain retention or your bike has an integrated chain guide, you can still add some bash protection with the OneUp ISCG05 Underbash.
The Underbash includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T. Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). If your bike has three ISCG05 tabs, check with the frame manufacturer to ensure the lower tabs are strong enough for a bash application. Failure to do so could result in frame damage.
FEATURES
- Install without removing your crank
- Single tool install and adjustment
- Boost compatible
- Oval Compatible
- Stainless Steel hardware
- Includes 3 bash plates (28-30T, 32-34T, 36T)
COMPATIBILITY
- Not compatible with E-bikes.
UNDERBASH SETUP INSTRUCTIONS
1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
2. Rotate backplate to desired location and torque bolts to 5Nm
BASH REPLACEMENT INSTRUCTIONS
1. Remove Underbash from bike
2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
3. Remove Bash bolts using a 5mm hex
4. Select desired bash plate and reinstall bash bolts to 6Nm
5. Reinstall bolt retaining clip on the rear bash plate bolt
6. Reinstall Underbash onto bike
