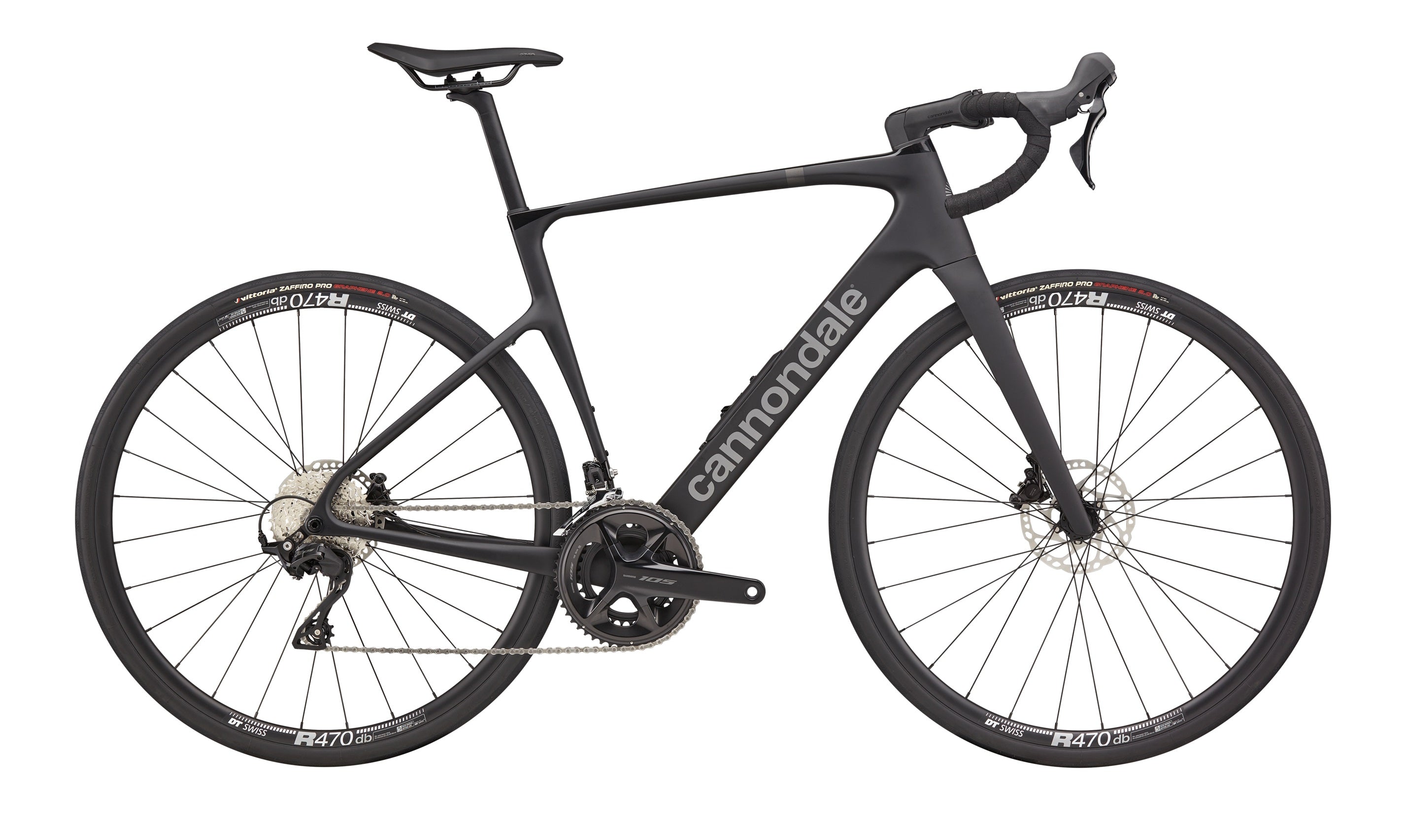

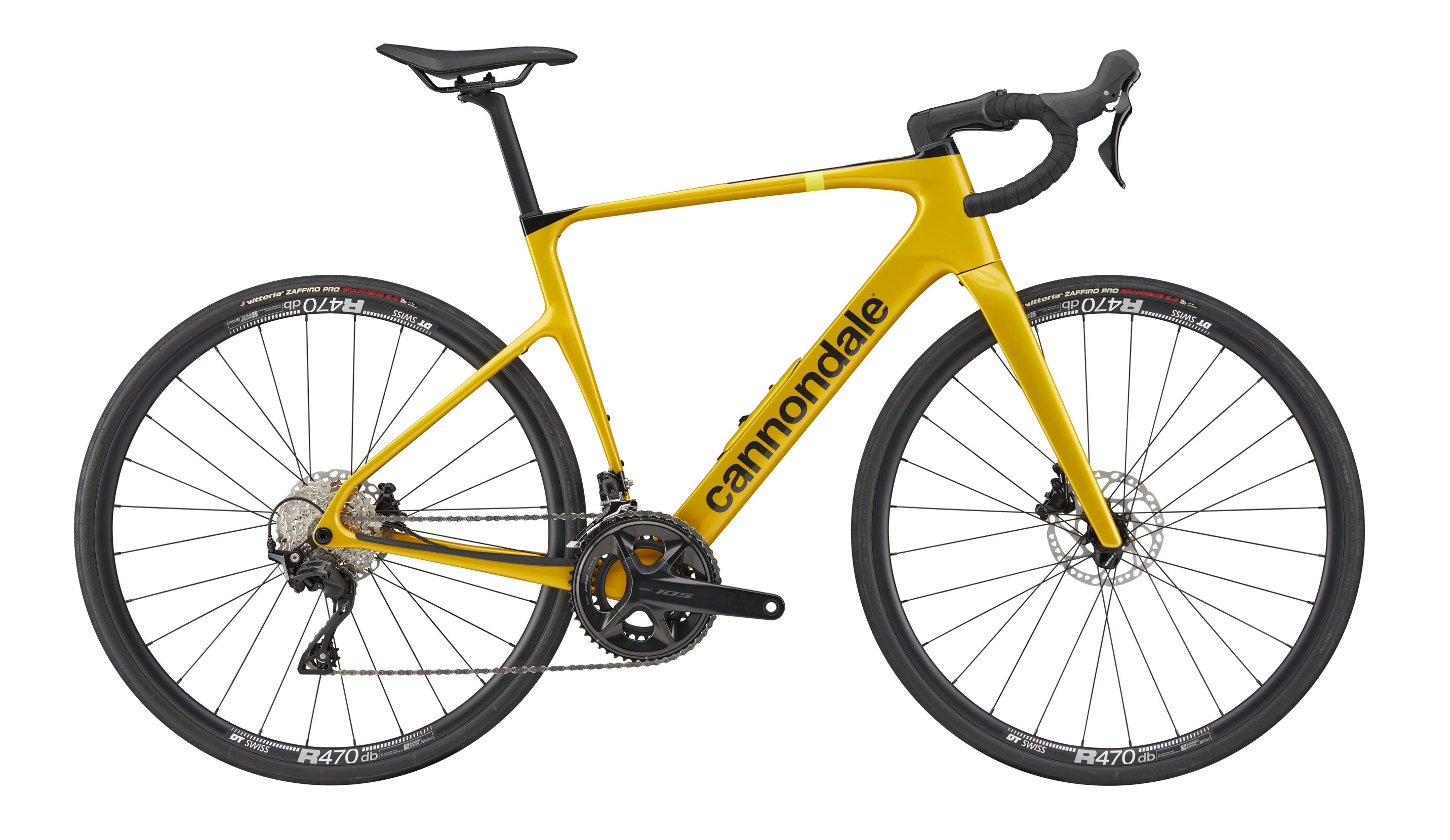

Cannondale Synapse Carbon 5

Real World Performance

Designed to go fast, built to go long, and made to keep you comfortable, the Synapse redefines road performance. With a lightweight frame featuring wind-tunnel-sculpted tubing and PB-blasting stiffness-to-weight, it’s a bike that’s ready for anything you demand of it. Just ask Lachlan Morton why he trusted it for his record-smashing lap of Australia. Unreal speed, engineered for real-world roads.​

Compliant Comfort

With advancements in our carbon layup, our engineers have made the new Synapse 20% more compliant than its already butter-smooth predecessor, ensuring you feel 100% more comfortable even on the roughest roads.

Like A Glove

A great fit and feel makes for a great ride. And with our Proportional Response Construction, every rider gets that as standard. From the carbon layup through to the geometry, everything on Synapse has been tuned and tested by frame size. So that your bike works in harmony with you to give the best possible ride for you and your height.

Bring it all, bring it on

Our all-new StashPort storage system in the downtube is there when you need it and hidden when you don’t. Paired with its StashBag buddy, you can bring along your ride essentials and know that they’ll be secure, whatever you get up to out there. Meanwhile, best-in-class tire clearance lets you take the idea of riding for longer to a whole new level.

Big Ride Rubber

Best-in-class clearance for tires with a maximum measured width of up to 48mm in the front ad 42mm in the rear - with at least 4mm of extra clearance on each side - makes Synapse a true, ride-longer, ride-whatever kind of road bike.

StashPort + StashBag

StashPort is our take on a downtube storage system, accessed beneath the water bottle cage. While every Synapse includes StashBag, a specifically designed bag for tools and other ride essentials.

D-Lightful

The D-shaped design of Synapse's seatpost enhances aerodynamics and boosts vertical compliance. Reducing muscle fatigue so that you stay fresher on those longer day.

Fly Delta

The unique-to-Cannondale v-shape Delta Steerer keeps you cockpit tidy and cables routed internally. While the reduced headtube frontal area brings aero gains to the party. As well as sleeker good looks.

Frameset

• Frame: Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
• Fork: Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
• Headset: Integrated, 1-1/8" - 1-1/2"

Drivetrain

• Rear Derailleur: Shimano 105 7100
• Front Derailleur: Shimano 105 7100, braze-on
• Shifters: Shimano 105 7100, 12-speed
• Chain: Shimano 105 7100, 12-speed
• Crank: Shimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
• Rear Cogs: Shimano 105 7100, 11-36, 12-speed
• Bottom Bracket: Shimano BSA 68

Brakes

• Brakes: Shimano 105 7170 hydraulic disc, 160/160 RT64 centerlock rotors
• Brake Levers: Shimano 105 7120 hydraulic disc

Wheels

• Rims: DT Swiss R470 DB, 28h
• Spokes: Stainless Steel, 14g
• Tire Size: 32
• Wheel Size: 700c
• Hubs: (F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
• Tires: Vittoria Zaffiro Pro V, 700x32c

Components

• Handlebar: Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
• Grips: Cannondale Bar Tape, 3.5mm
• Saddle: Fizik Terra Argo X7, 150mm
• Seatpost: HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset

Extra

• Extra: Large StashBag downtube storage bag
