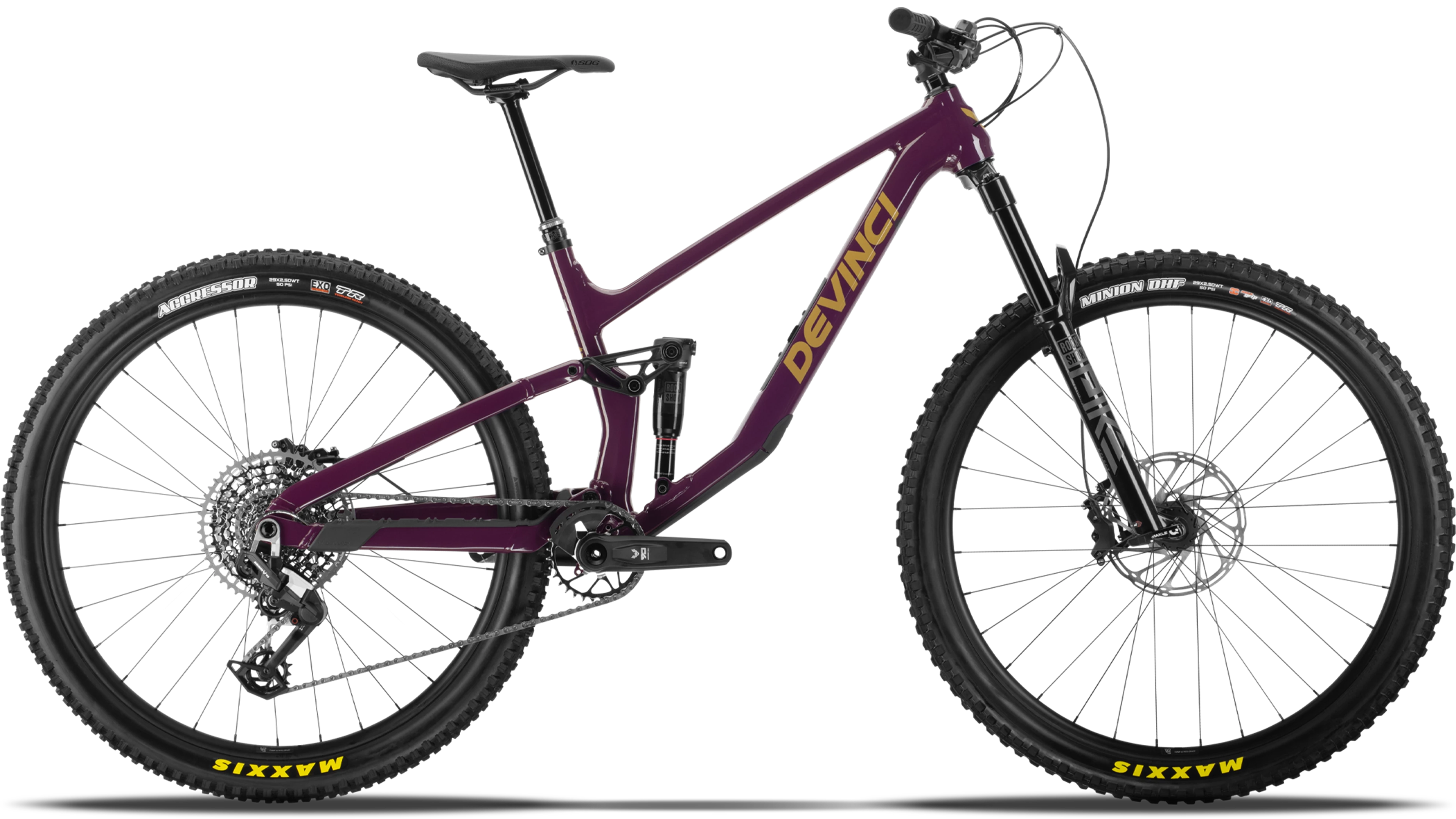

Devinci Troy ST Eagle 90

Devinci Troy ST Eagle 90

$5,099.99
Color:Feeling Purple
Size:M
Quantity:

More From Devinci

Available for local pickup or delivery within 40km. Does not ship.
Pickup available at County Cycle Usually ready in 24 hours

Devinci Troy ST Eagle 90

Feeling Purple / M

County Cycle

Pickup available, usually ready in 24 hours

4977 King Street
Beamsville ON L0R 1B0
Canada

+12895668855

Hours

M-F 9am-6pm / Sat 9am-5pm

Lightning with a bottle cage

The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.

Small but mighty.

The Troy ST! Small but mighty. With 130mm - 140mm of travel, it’s the sweet spot for just about anything. Agile, lively, and responsive, the ST is the black belt in the Troy family. From big missions in the alpine to epic singletracks or more casual family rides, it’s ready to answer the call.

SRAM EAGLE 90 TRANSMISSION

A durable and high-performing package that won’t let down even the most demanding riders. The new Eagle 90 groupset from SRAM packs all the techs and attributes of their latest Transmission ecosystem into an ultra-robust premium mechanical drivetrain. The best in terms of performance and durability.

TAILORED WHEEL SIZES

The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.

FRAME TECH SPECS

Rear travel: 130mm

Front travel: 140mm

Rear tire clearance: 27,5'' x 2.6” / 29'' x 2.5''

Rear hub spacing: 12 x 148 Boost

Max & min chainring clearance: Max. 34T | Min. 28T

Chainline: 55mm

Derailleur hanger: UDH™

Caliper mount: 200mm Post Mount

Seat tube diameter: 31.6mm ID / 34.9mm OD

Seatpost max insertion: XS → 235mm / S → 265mm / M → 280mm / L → 305mm / XL → 330mm

Headset: Top ZS44 | Bottom ZS56

Cable routing: Internal

Rear shock dimension: Trunnion | 185 x 47.5mm

Rear shock hardware: Top: NA | Bottom: 40 x 10mm

Linkage bearing type: Enduro™ double-lip sealed

Fork dimensions (Axle-to-Crown measurement/Offset): 551mm / 44mm (M, L, XL), 533mm / 37mm (XS, S)

Chain guide mount: ISCG 05 – 3-Bolt

Manufacturing: Handcrafted in Canada

Frame material: Aluminum 6061-T6 | Optimum G04

  • HEADSET: FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP: Alloy CNC | 34.9mm
  • SUSPENSION FORK: RockShox Pike Select Charger RC Db | 140 | 1T | 44 Offset
  • REAR SHOCK: RockShox Deluxe Select 185x47.5 Trunnion
  • HANDLEBAR: RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
  • STEM: V2 Pro | B:35mm | L:40mm | 0°
  • SADDLE: SDG FLY MTN
  • SEATPOST: TranzX Dropper | 31.6mm
  • SEATPOST LEVER: TranzX
  • GRIPS: Devinci | w/lock-on
  • FRONT BRAKE: SRAM DB6
  • REAR BRAKE: SRAM DB6
  • FRONT ROTOR: SRAM Centerline | 200mm
  • REAR ROTOR: SRAM Centerline | 200mm
  • REAR DERAILLEUR: SRAM Eagle 90 | 12s
  • REAR SHIFTER: SRAM Eagle 90 | 12s
  • CRANKSET: SRAM Eagle 90 | DUB | 12s | 32T | 165mm
  • BOTTOM BRACKET: SRAM DUB 73mm Threaded
  • CASSETTE: SRAM XS1275 | T-TYPE | 12s | 10-52T
  • CHAIN: SRAM GX | T-Type | 12s
  • FRONT RIM: V2 Comp 29 | 29mm inner | TR
  • FRONT HUB: Dtswiss 370 Classic | 15x110 Boost | 6bolts | 32H
  • REAR HUB: Dt Swiss 370 Classic | 12x148 Boost
  • REAR RIM: V2 Comp 29 | 29mm inner | TR
  • SPOKES: Sapim Stainless 14G w/Nylok
  • FRONT TIRE: Maxxis Minion DHF | 29x2.5WT | Exo | TR | 3C | MaxGrip
  • REAR TIRE: Maxxis Aggressor | 29x2.5WT | EXO | TR | Dual Compound

Weight: 15.45 kg / 34.06 lb
*For a size medium complete bike, weight approximate and subject to change.
*Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

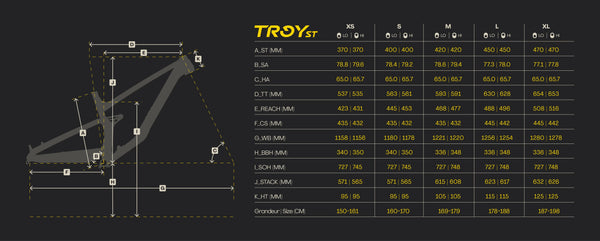

View Devinci Troy ST Eagle 90 Size Chart
