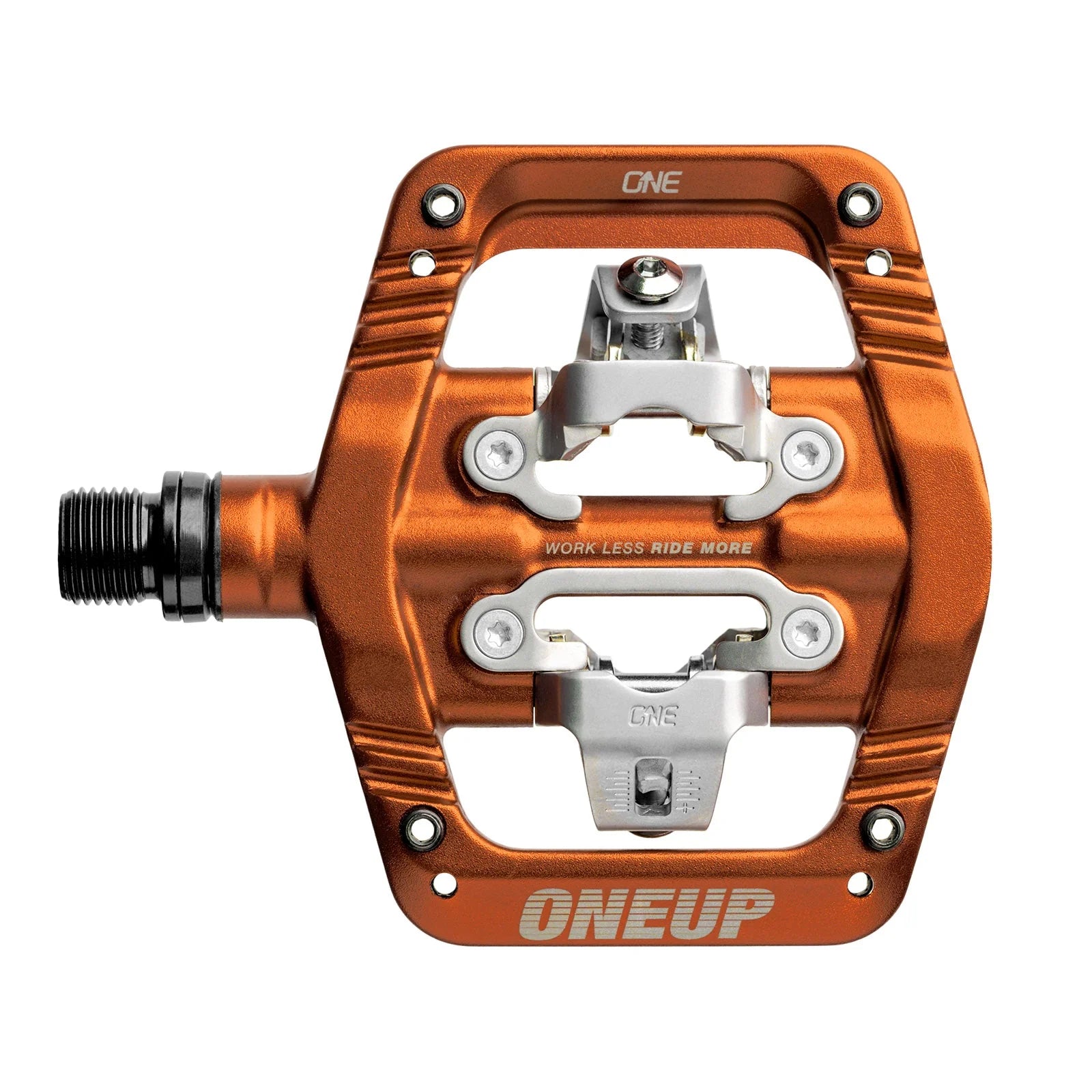

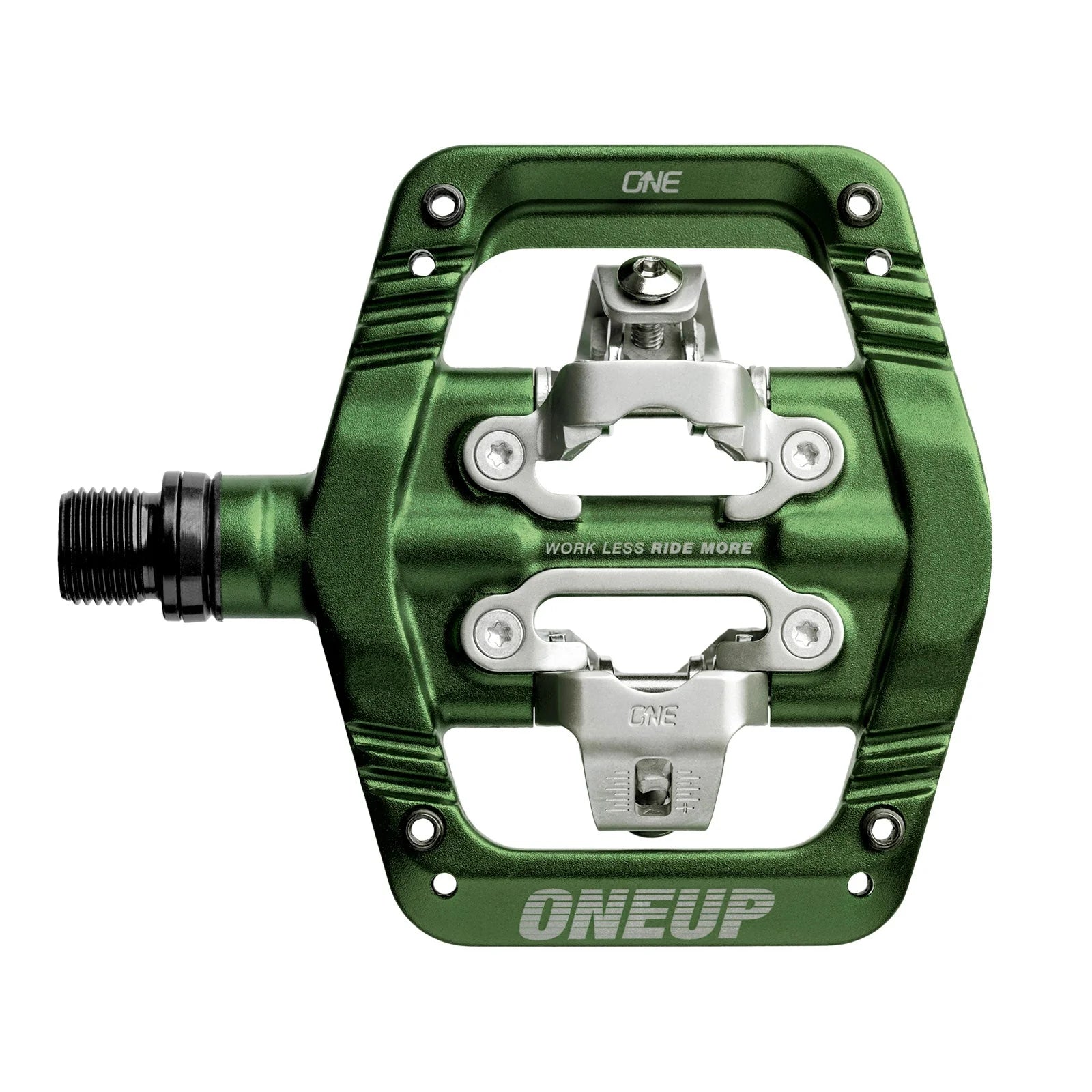

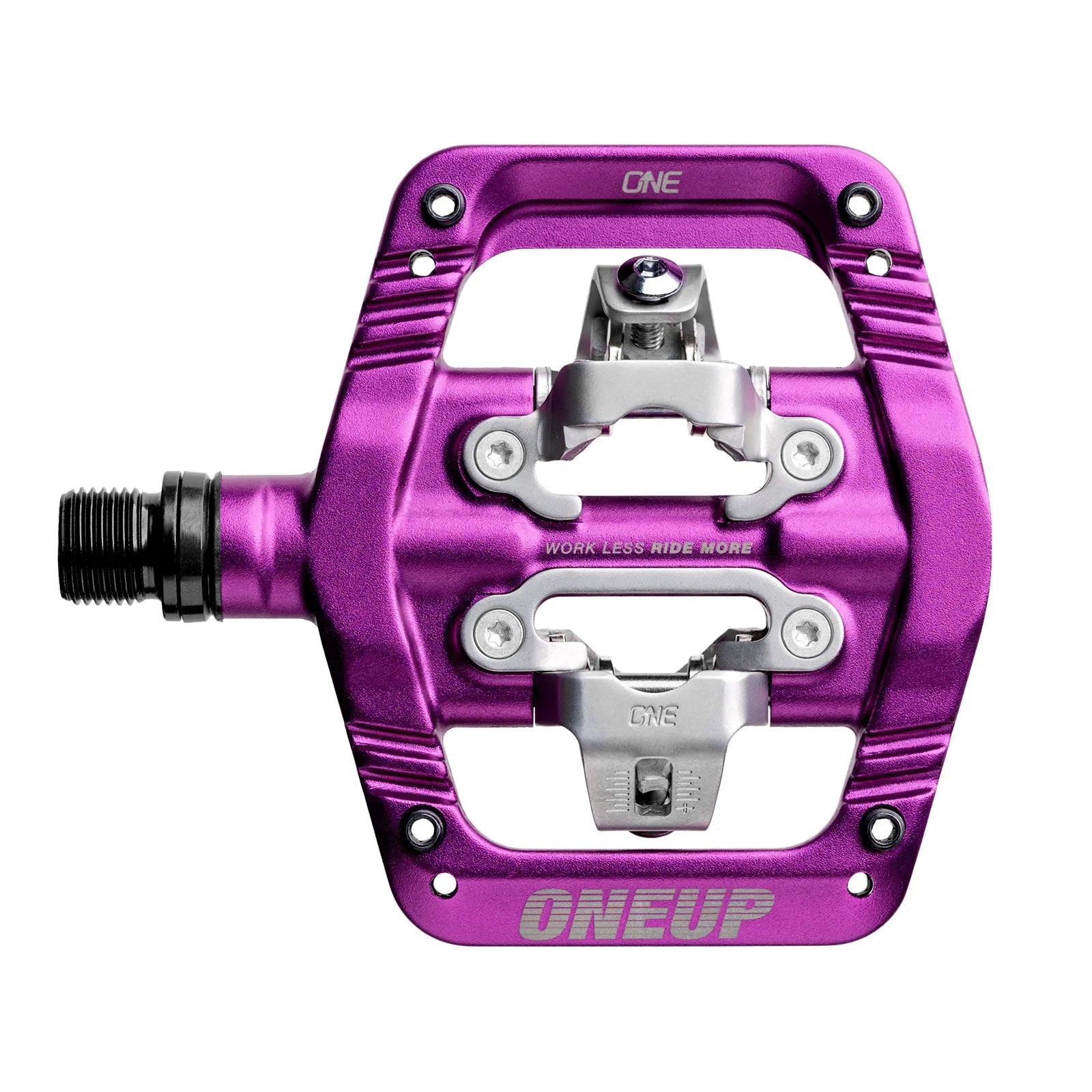

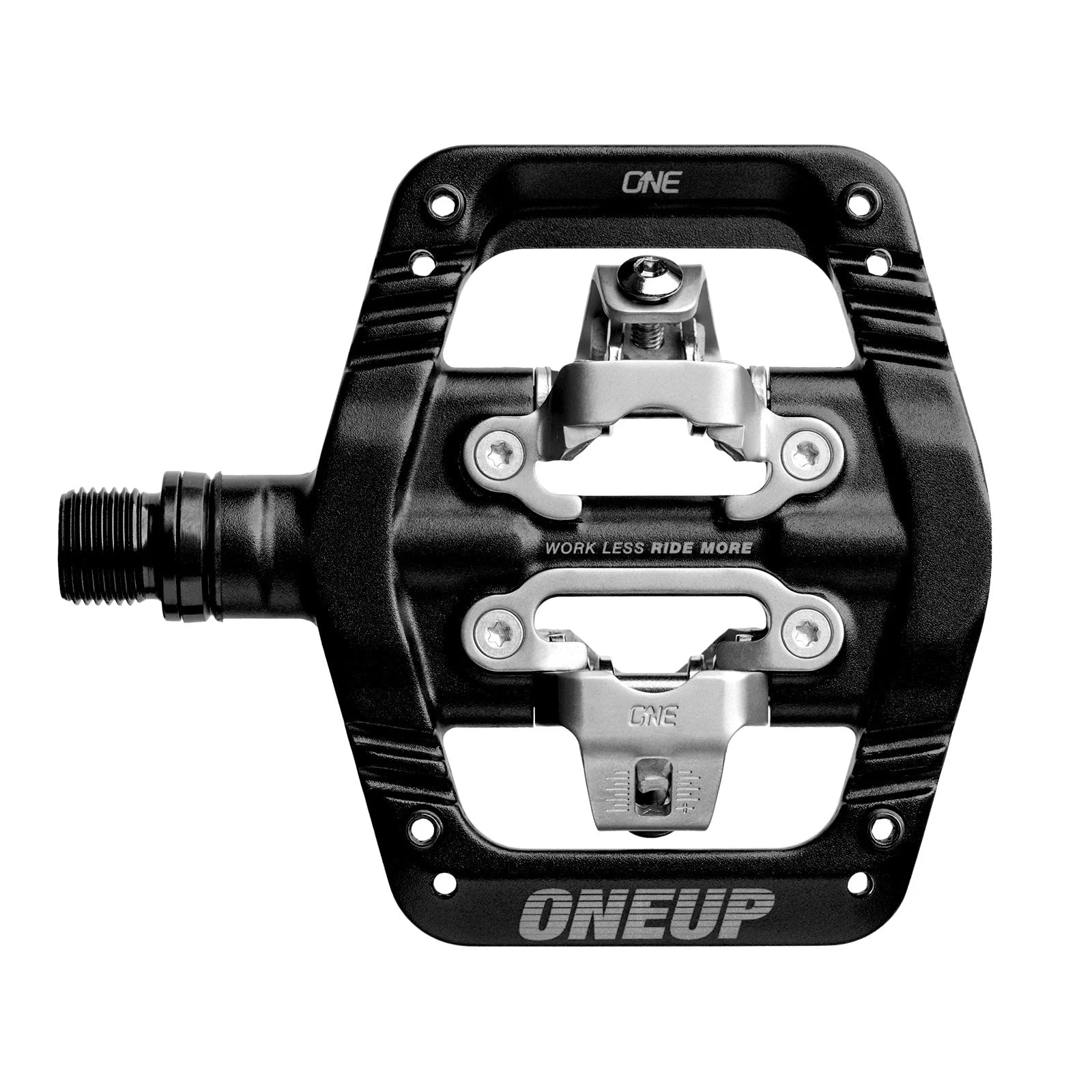

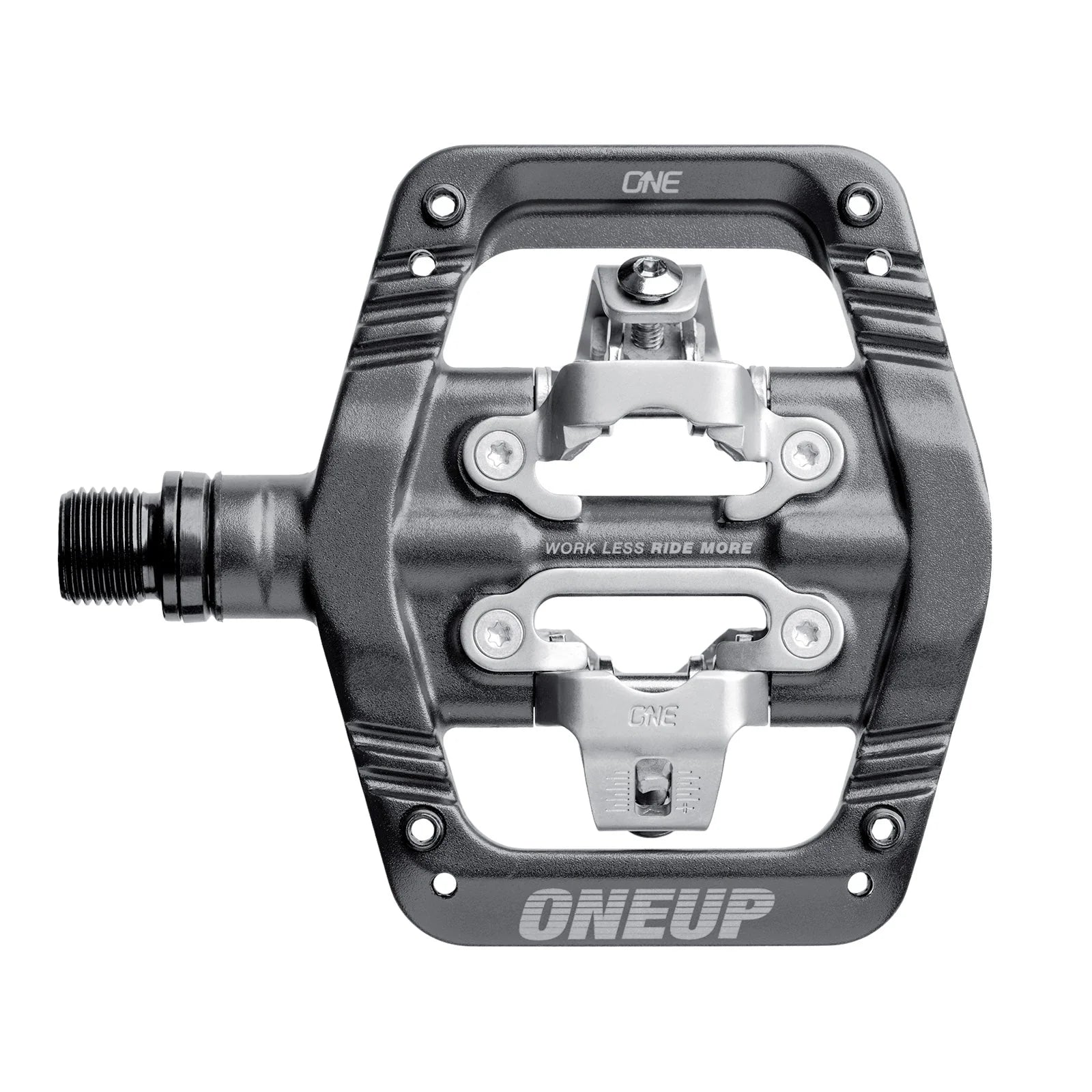

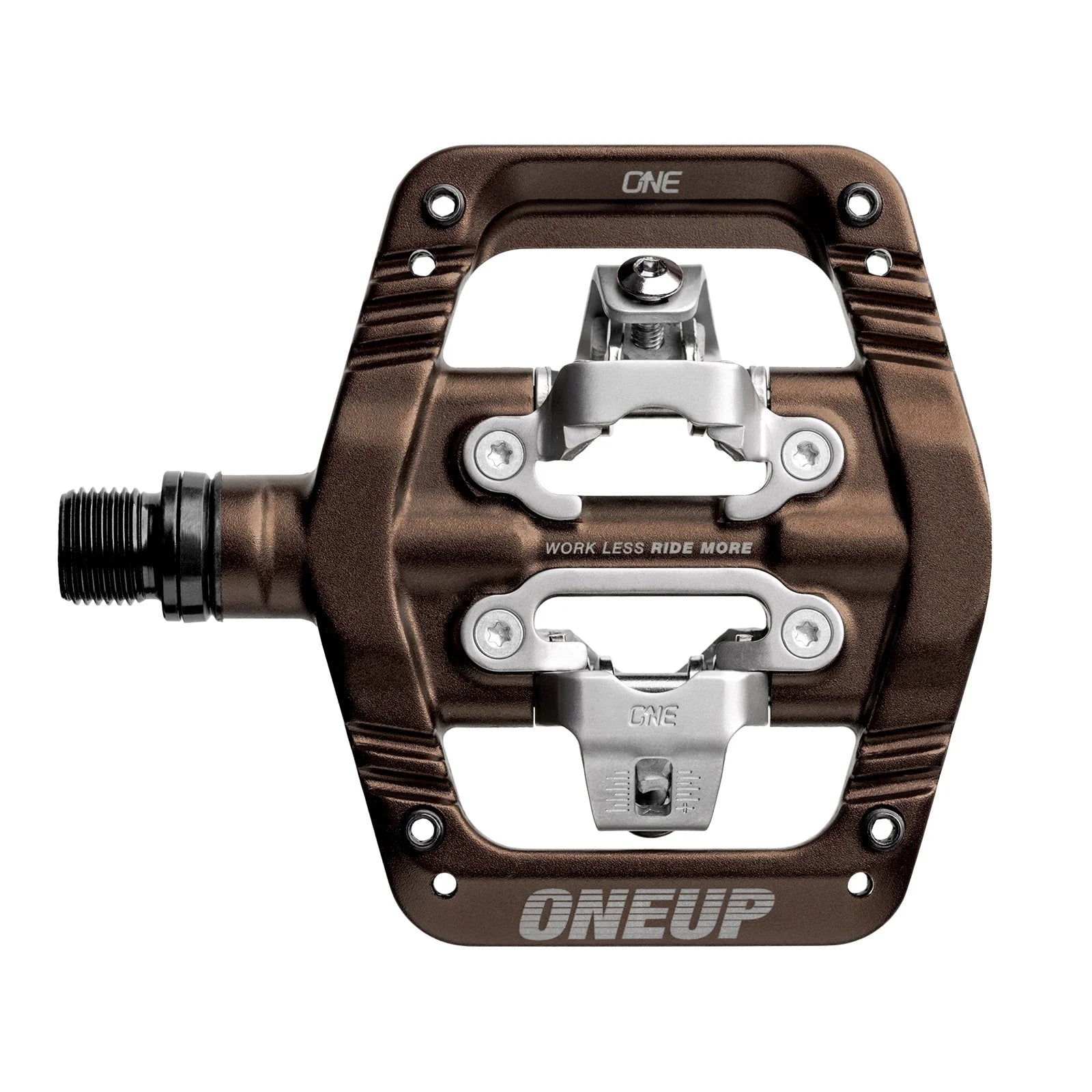

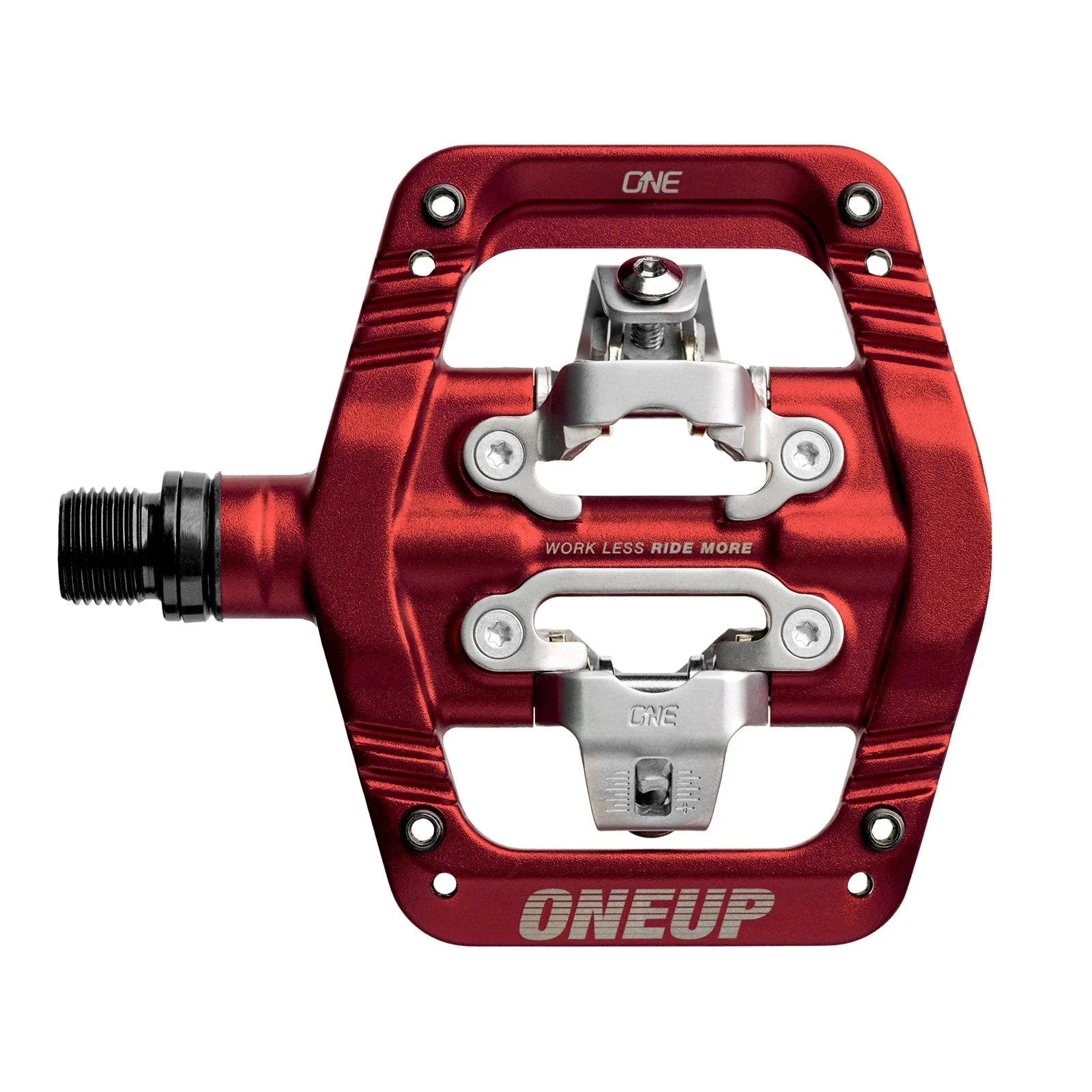

OneUp Components Clip Pedals

Things you Should Know

• Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
• Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
• Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
• 5 degrees of float and 12 degree release angle.
• 2 year manufacturer warranty.
• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.

• Weight: 410g with pins (4 pins per side)

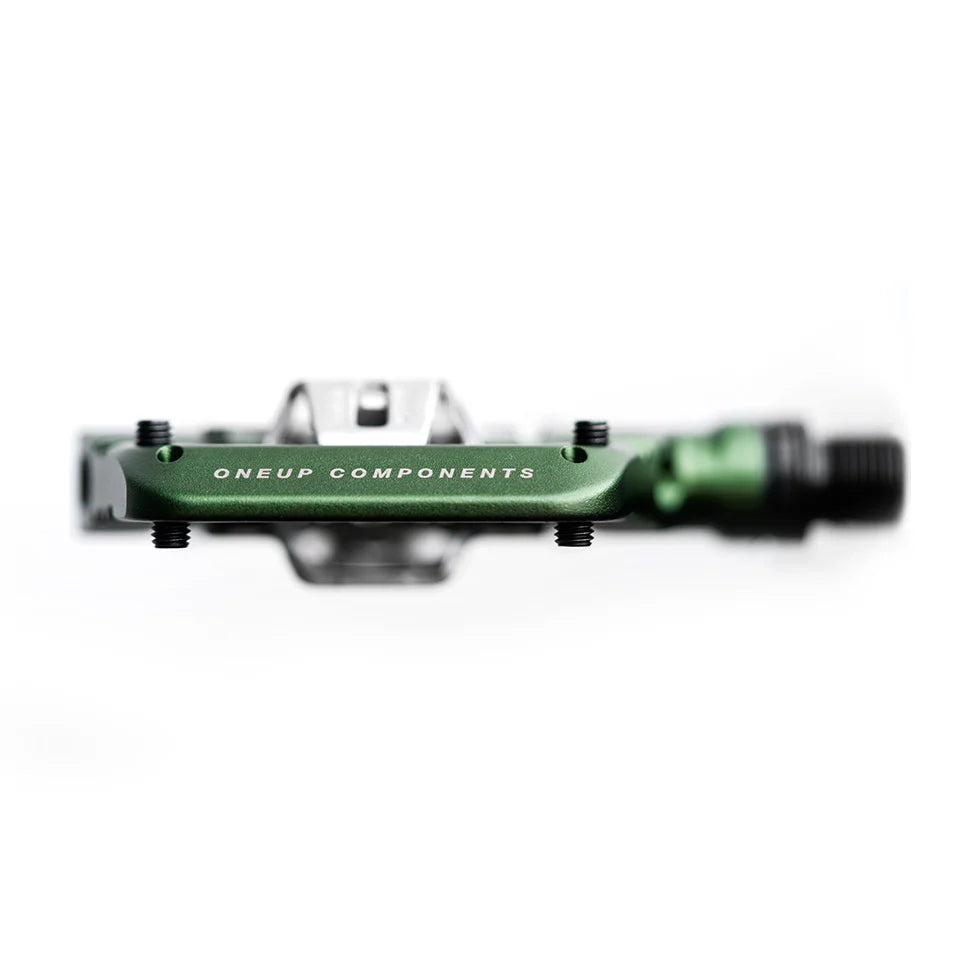

• Thickness: 14.4mm (body), 26.8mm (binding)
• Size: 80mm x 90mm (W x L)
• Stance width: 57.5mm (center of clip to outside of crank face)
• Float: 5° (12° release angle)
• Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )
• Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings
• Axle: Chromoly Steel with Black ED coating
• Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole)

What's in the box:

• 2x Clip Pedals (1x Left, 1x Right)
• 4x Installed hollow threaded pins per side (16x pins total)

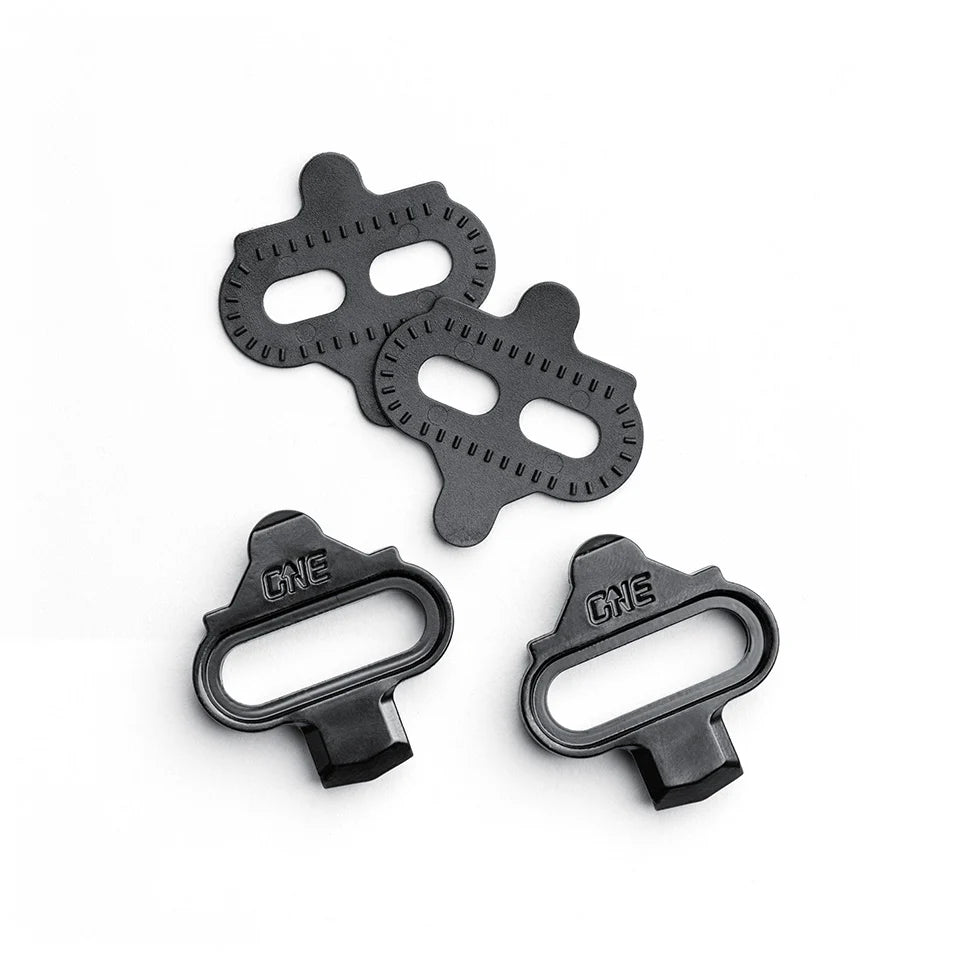

• 2x OneUp Cleats with included hardware
• 2x Cleat Spacers
• 1x Pedal Bearing Nut Tool
