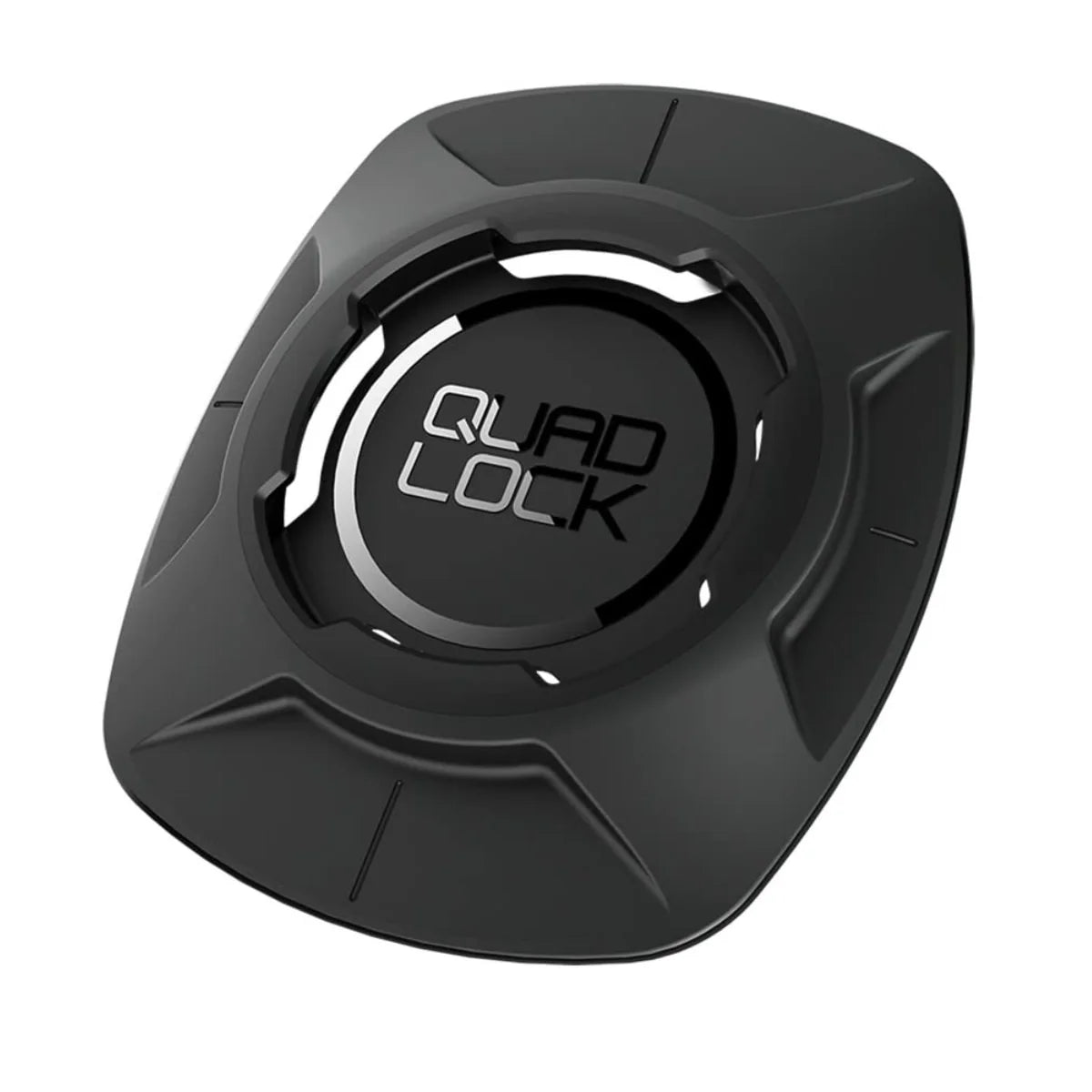

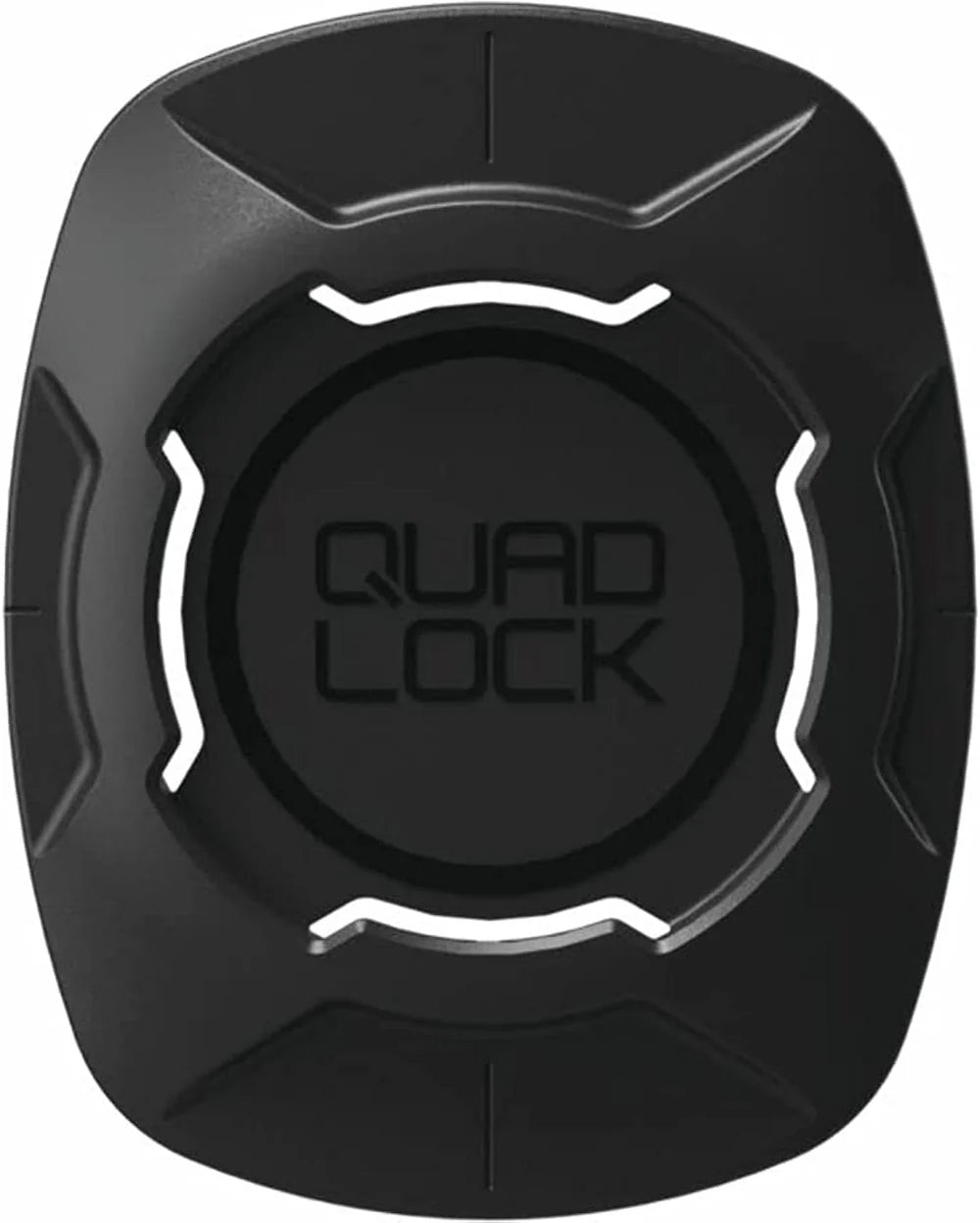

Quad Lock Universal Phone Adaptor

Our Quad Lock® Universal Adaptors features our secure locking mechanism compatible with all twist, lock mounts and can be directly adhered to phones, cases and most flat metal or plastic surfaces.

At just 5mm thick, the Quad Lock® Universal Adaptor fits seamlessly onto the back of smartphones and cases.

• 3M™ VHB adhesive

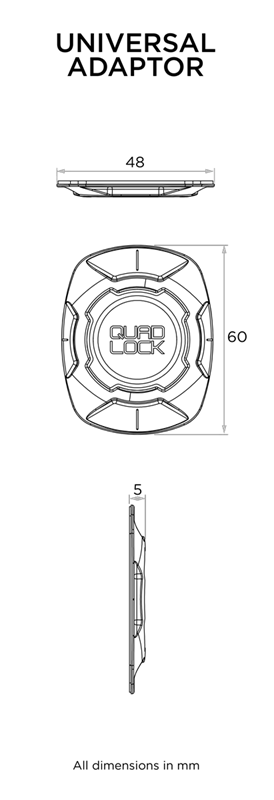

• Slim profile (5mm thick or 13/64”)
• 48mm wide (1-7/8”) and 60mm tall (2-3/8”)
• Durable and tough composite construction
• Adheres to flat and slightly curved surfaces
• Compatible with Quad Lock® twist, lock mounts, heads, and accessories

The Quad Lock Universal Adaptor uses a 3M™ VHB 4952 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:

• Plastics such as PC, ABS, PVC, Nylon, Acrylic
• Non-painted metals
• Un-coated glass

The adhesive will not bond to the following substrates:

• Rubber, TPU, TPE
• Leather
• Silicone
• Hydrophobic coated glass (Also known as anti-fingerprint glass, which is found on the back of most modern smartphones)
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
• Wood

We highly recommend using a case with the Universal Adaptor if your phone has a glass back.

Please ensure the substrate is thoroughly cleaned and dry before applying the Universal Adaptor.

The 3M™ VHB™ is a single use adhesive and is not reusable.

Please refer to the Product Suitability Guide for more information.

Please Note: Use of the Universal Adaptor may interfere with Wireless Charging
