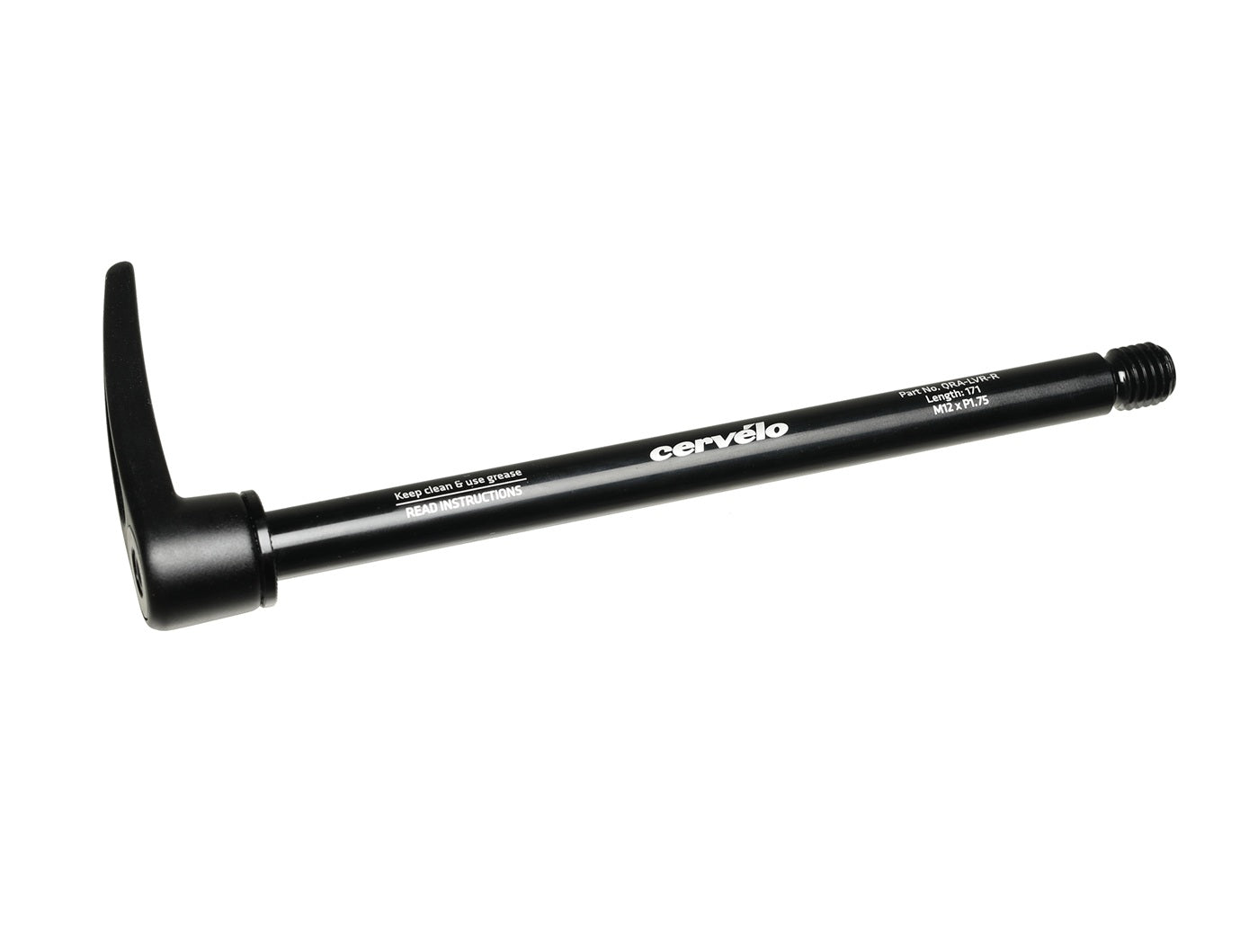

Cervelo Rear Thru Axle with Handle

These threaded replacement thru-axles from Cervelo can be used on any of their disc brake framesets and bikes from 2016-present. These are a direct fit for all threaded frame and fork systems. If you have the RAT x-lock style system, you will need to place the x-lock receiver on the frame and/or fork with the proper part from Cervelo to use these thru-axles.

Unlike some threaded Cervelo thru-axles these do not feature a lever lock, but a DT-style lever end that slides out over an internal spine and can be used to tighten and then be positioned in the angle you prefer. The hollow alloy axles are lightweight, with a waisted center. Many cyclists prefer the simplicity and stability of this system, though the RAT system is considered by many to be faster for race wheel changes.

Part # QRA-LVR-R

Specifications: 171mm total length for 142mm rear hub width, M12 x P1.75 threading
